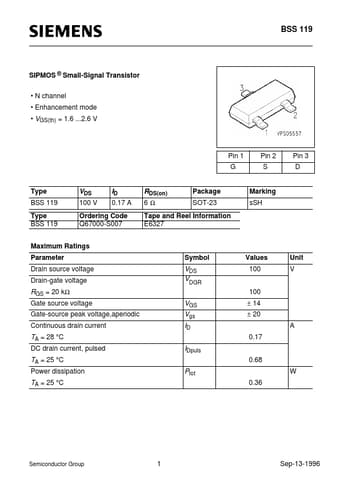

BSS 119
SIPMOS ® Small-Signal Transistor • N channel • Enhancement mode • VGS(th) = 1.6 ...2.6 V
Pin 1 G
Pin 2 S
Pin 3 D
Type BSS 119 Type BSS 119
VDS
100 V
ID
0.17 A
RDS(on)
6Ω
Package SOT-23
Marking sSH
Ordering Code Q67000-S007
Tape and Reel Information E6327
Maximum Ratings Parameter Drain source voltage Drain-gate voltage Symbol Values 100 100 Unit V
VDS VDGR VGS Vgs ID
RGS = 20 kΩ
Gate source voltage Gate-source peak voltage,aperiodic Continuous drain current
± 14 ± 20 A 0.17
TA = 28 °C
DC drain current, pulsed
IDpuls
0.68
TA = 25 °C
Power dissipation
Ptot
0.
