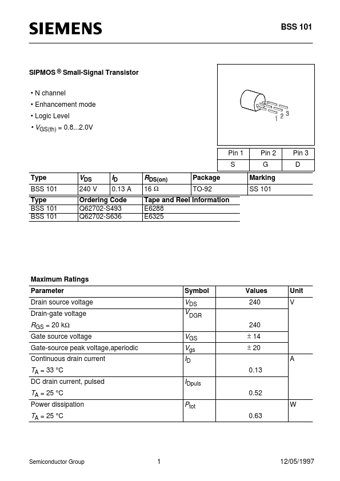

BSS 101
SIPMOS ® Small-Signal Transistor • N channel • Enhancement mode • Logic Level
• VGS(th) = 0.8...2.0V
Pin 1 S Type BSS 101 Type BSS 101 BSS 101
Pin 2 G Marking SS 101
Pin 3 D
VDS
240 V
ID
0.13 A
RDS(on)
16 Ω
Package TO-92
Ordering Code Q62702-S493 Q62702-S636
Tape and Reel Information E6288 E6325
Maximum Ratings Parameter Drain source voltage Drain-gate voltage Symbol Values 240 240 Unit V
VDS V
DGR
RGS = 20 kΩ
Gate source voltage Gate-source peak voltage,aperiodic Continuous drain current
VGS Vgs ID
± 14 ± 20 A 0.13
TA = 33 °C
DC drain current, pulsed
IDpuls
0.52
TA = 25 °C
Power dissipation
Ptot
0.
