BSS125 Datasheet - Siemens Semiconductor

BSS125 SIPMOS Small-Signal Transistor

BSS 125 SIPMOS ® Small-Signal Transistor N channel Enhancement mode VGS(th) = 1.5 2.5 V Pin 1 G Type BSS 125 Type BSS 125 BSS 125 BSS 125 Pin 2 D Marking SS125 Pin 3 S VDS 600 V ID 0.1 A RDS(on) 45 Ω Package TO-92 Ordering Code Q62702-S021 Q67000-S008 Q67000-S233 Tape and Reel Information E6288 E6296 E6325 Maximum Ratings Parameter Drain source voltage Drain-gate voltage Symbol Values 600 600 Unit V VDS V DGR RGS = 20 kΩ Gate source voltage Gate-source.

BSS125_SiemensSemiconductor.pdf

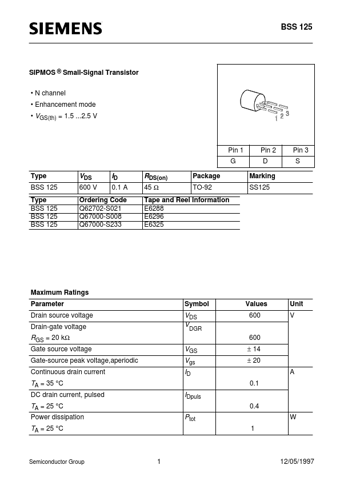

Preview of BSS125 PDF
BSS125 Datasheet Preview Page 2 BSS125 Datasheet Preview Page 3

Datasheet Details

Part number:

BSS125

Manufacturer:

Siemens Semiconductor

File Size:

78.12 KB

Description:

Sipmos small-signal transistor.
