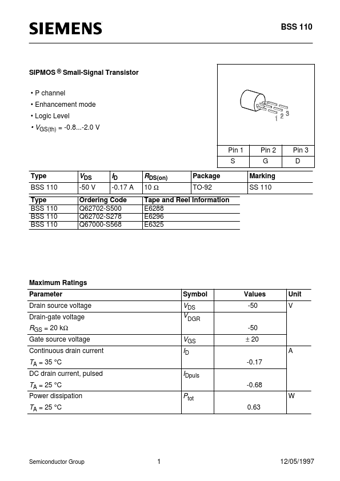

BSS 110 SIPMOS ® Small-Signal Transistor • P channel • Enhancement mode • Logic Level • VGS(th) = -0.8...-2.0 V Pin 1 S Type BSS 110 Type BSS 110 BSS 110 BSS 110 Pin 2 G Marking SS 110 Pin 3 D VDS -50 V ID -0.17 A RDS(on) 10 Ω Package TO-92 Ordering Code Q62702-S500 Q62702-S278 Q67000-S568 Tape and Reel Information E6288 E6296 E6325 Maximum Ratings Parameter Drain source voltage Drain-gate voltage Symbol Values -50 -50 Unit V VDS V DGR RGS = 20 kΩ Gate source voltage Continuous drain current VGS ID ± 20 A -0.17 TA = 35 °C DC drain current, pulsed IDpuls -0.68 TA = 25 °C Power dissipation Ptot 0.
