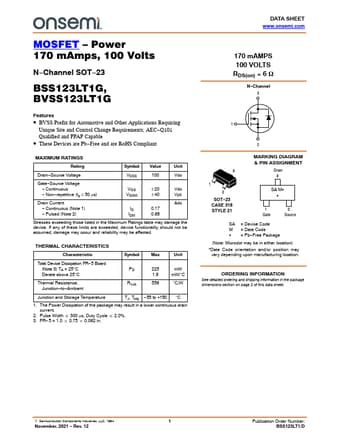

MOSFET – Power 170 mAmps, 100 Volts
N−Channel SOT−23
BSS123LT1G, BVSS123LT1G
Features
• BVSS Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
MAXIMUM RATINGS
Rating
Symbol Value
Unit
Drain−Source Voltage
Gate−Source Voltage − Continuous − Non−repetitive (tp ≤ 50 ms)
VDSS
100
Vdc
VGS
± 20
Vdc
VGSM
± 40
Vpk
Drain Current − Continuous (Note 1) − Pulsed (Note 2)
Adc
ID
0.17
IDM
0.68
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
