BSS192 Datasheet - Siemens Semiconductor Group

BSS192 SIPMOS Small-Signal Transistor

BSS 192 SIPMOS ® Small-Signal Transistor P channel Enhancement mode Logic Level VGS(th) = -0.8-2.0 V Pin 1 G Pin 2 D Pin 3 S Pin 4 D Type BSS 192 Type BSS 192 VDS -240 V ID -0.15 A RDS(on) 20 Ω Package SOT-89 Marking KB Ordering Code Q62702-S634 Tape and Reel Information E6327 Maximum Ratings Parameter Drain source voltage Drain-gate voltage Symbol Values -240 -240 Unit V VDS VDGR VGS ID RGS = 20 kΩ Gate source voltage Continuous drain cur.

BSS192_SiemensSemiconductorGroup.pdf

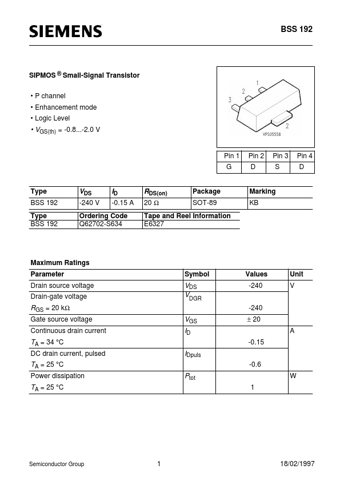

Preview of BSS192 PDF
BSS192 Datasheet Preview Page 2 BSS192 Datasheet Preview Page 3

Datasheet Details

Part number:

BSS192

Manufacturer:

Siemens Semiconductor Group

File Size:

75.16 KB

Description:

Sipmos small-signal transistor.
