Datasheet Details
- Part number
- HFA200MD40D
- Manufacturer
- IRF
- File Size
- 294.39 KB
- Datasheet
- HFA200MD40D_IRF.pdf
- Description
- Ultrafast Soft Recovery Diode
HFA200MD40D Description

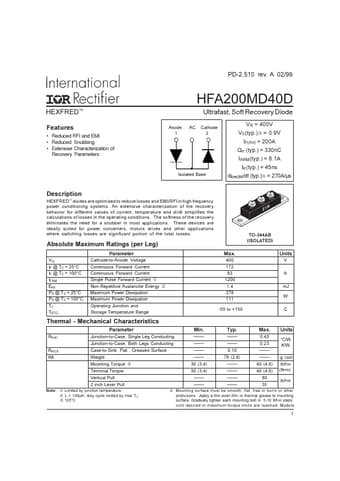

PD-2.510 rev.A 02/99 HEXFRED .
HEXFRED diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems.
HFA200MD40D Features
* HFA200MD40D
TM
Ultrafast, Soft Recovery Diode
V R = 400V V F(typ. )
* = 0.9V IF(AV) = 200A Qrr (typ. ) = 330nC IRRM(typ. ) = 8.1A trr(typ. ) = 45ns di(rec)M/dt (typ. )
* = 270A/µs
Reduced RFI and EMI Reduced Snubbing Extensive Characterization of Recovery Parameters
Anode 1
AC
Cathode 2
HFA200MD40D Applications
* These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses. TM
Absolute Maximum Ratings (per Leg)
Parameter
VR IF @ TC = 25°C IF @ TC = 100°C IFSM EAS PD @ T C = 25°C PD @ TC = 100°C TJ TSTG Cathode
