HFA240NJ40C

Ultrafast/ Soft Recovery Diode

HFA240NJ40C Features

* • Reduced RFI and EMI • Reduced Snubbing • Extensive Characterization of Recovery Parameters TM Ultrafast, Soft Recovery Diode LUG TERMINAL ANODE 1 LUG TERMINAL ANODE 2 BASE COMMON CATHODE V R = 400V VF(typ.)

* = 1V IF(AV) = 240A Qrr (typ.) = 290nC IRRM(typ.) = 7.5A trr(typ.) = 50ns di(rec)M/d

HFA240NJ40C General Description

HEXFRED diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifies the calculations of losses in the operating conditions. The softness of the.

HFA240NJ40C Datasheet (323.78 KB)

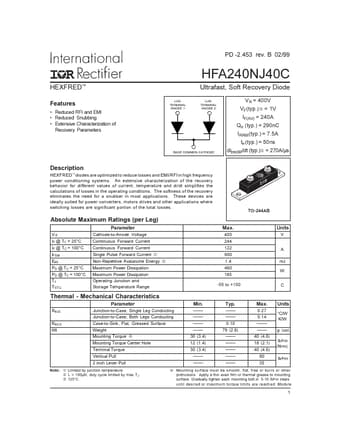

Preview of HFA240NJ40C PDF

Datasheet Details

Part number:

HFA240NJ40C

Manufacturer:

International Rectifier

File Size:

323.78 KB

Description:

Ultrafast/ soft recovery diode.
