HFA240NJ40D

Soft Recovery Diode

HFA240NJ40D Features

* HFA240NJ40D Anode 1 Cathode 2 TM Ultrafast, Soft Recovery Diode V R = 400V VF(typ.)

* = 1V IF(AV) = 240A Qrr (typ.) = 290nC IRRM(typ.) = 7.5A trr(typ.) = 50ns di(rec)M/dt (typ.)

* = 270A/µs • Reduced RFI and EMI • Reduced Snubbing • Extensive Characterization of Recovery Parameters Base A

HFA240NJ40D General Description

HEXFRED diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifies the calculations of losses in the operating conditions. The softness of the.

HFA240NJ40D Datasheet (320.46 KB)

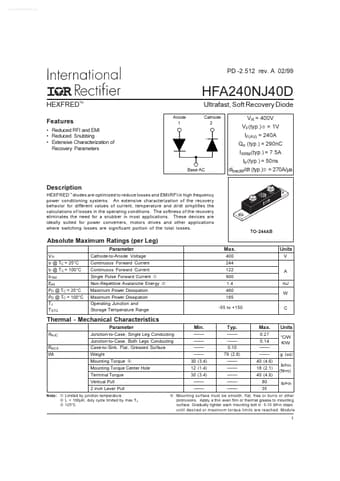

Preview of HFA240NJ40D PDF

Datasheet Details

Part number:

HFA240NJ40D

Manufacturer:

International Rectifier

File Size:

320.46 KB

Description:

Soft recovery diode.
