HFA200FA120P - Ultrafast Soft Recovery Diode

HFA200FA120P Description

www.DataSheet.co.kr HFA200FA120P Vishay Semiconductors HEXFRED® Ultrafast Soft Recovery Diode, 200 A .
APPLICATIONS PRODUCT SUMMARY VR VF (typical) trr (typical) IF(DC) at TC 1200 V 2.

HFA200FA120P Features

* Fast recovery time characteristic
* Electrically isolated base plate
* Large creepage distance between terminal
* Simplified mechanical designs, rapid assembly
* UL approved file E78996 SOT-227
* Compliant to RoHS directive 2002/95/EC
* Desi

HFA200FA120P Applications

* PRODUCT SUMMARY VR VF (typical) trr (typical) IF(DC) at TC 1200 V 2.7 V 150 ns 100 A at 69 °C The dual diode series configuration (HFA200FA120P) is used for output rectification or freewheeling/clamping operation and high voltage application. The semiconductor in the SOT-227 package is isolated fro

📥 Download Datasheet

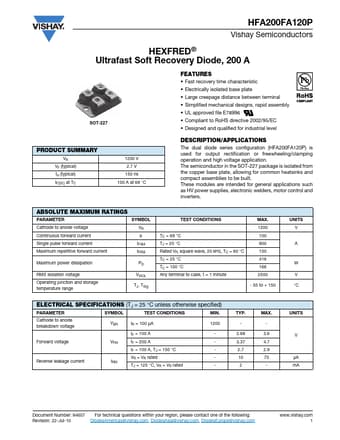

Preview of HFA200FA120P PDF
datasheet Preview Page 2 datasheet Preview Page 3
