SW2303 USB PD And QC Protocols Controller

The SW2303 is a highly integrated Type-C/Type-A port fast charging protocol controller. It supports BC1.2/PD3.0+PPS/QC4+/AFC/FCP/SCP/SFCP/PE charging protocols. It integrates an optocoupler driver and a FB feedback output for CC and CV loop control. With ACDC or DCDC and a few external components, .

SW2303 Features

* Power Management

* Wide input voltage range 3.0~25V

* Optocoupler drive and FB output

* CC/CV Mode

* VIN and VBUS fast discharge

* Cable voltage drop compensation

* Fast Charge Protocol

* Support QC5/QC4.0+/QC3.0/QC2.0 QC5 Report Num

SW2303-ISMARTWARE.pdf

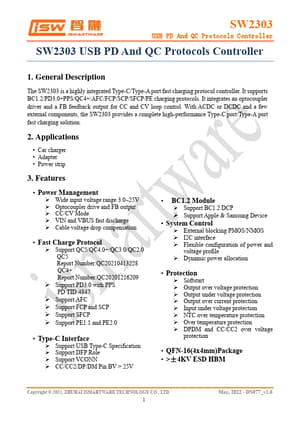

SW2303 Datasheet Preview — Preview of SW2303 PDF

Datasheet Details

Part number:

SW2303

Manufacturer:

ISMARTWARE

File Size:

479.21 KB

Description:

Usb pd and qc protocols controller.
