ICPL4502

Optocoupler

ICPL4502 Features

* High speed 1Mbit/s

* High AC Isolation Voltage 5000Vrms

* Guaranteed performance from 0°C to 70°C

* Wide Operating temperature range -55°C to 100°C

* Pb Free and RoHS Compliant

* UL File E91231

* VDE Approval Certificate No. 40044376 for 6N13

ICPL4502 General Description

The 6N135, 6N136, ICPL4502 and ICPL4503 devices each consists of an infrared emitting diode, optically coupled to a high speed photo detector transistor. A separate connection for the photodiode bias and output-transistor collector increases the speed by several orders of magnitude over conventional.

ICPL4502 Datasheet (2.29 MB)

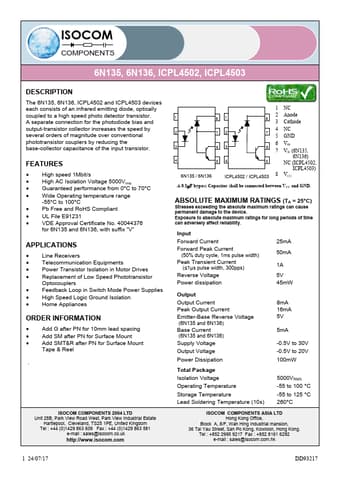

Preview of ICPL4502 PDF

Datasheet Details

Part number:

ICPL4502

Manufacturer:

ISOCOM

File Size:

2.29 MB

Description:

Optocoupler.
