IS22C040, 32 to 40 SEC INSTANT VOICE ROM

www.DataSheet4U.com IS22C040 IS22C040 32 to 40 SEC INSTANT VOICE ROM GENERAL .
ISSI OCTOBER 1998 ISSI ® ® FEATURES. Voice length at. 8 KHz sampling is 32 seconds. 6 KHz sampling is 40 seconds.

datasheet Preview Page 1 from Datasheet4u.com

IS22C040_ISSI.pdf

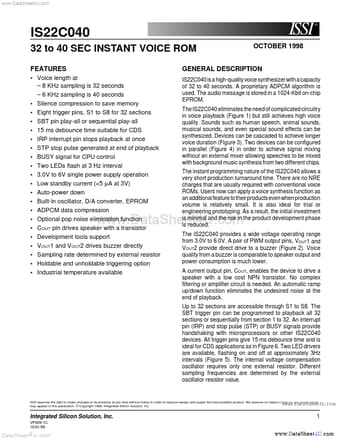

IS22C040 Datasheet Preview — Preview of IS22C040 PDF

Datasheet Details

Part number:

IS22C040

Manufacturer:

ISSI

File Size:

232.91 KB

Description:

32 to 40 SEC INSTANT VOICE ROM

Features

* Voice length at
* 8 KHz sampling is 32 seconds
* 6 KHz sampling is 40 seconds
* Silence compression to save memory
* Eight trigger pins, S1 to S8 for 32 sections
* SBT pin play-all or sequential play-all
* 15 ms debounce time suitable for CDS

Applications

* as in Figure 6. Two LED drivers are available, flashing on and off at approximately 3Hz intervals (Figure 5). The internal voltage compensation oscillator requires only one external resistor. Different sampling frequencies are determined by the external oscillator resistor value. www. DataSheet4U. co
