IS22EF16G, IS21EF08G 16GB eMMC

IS22EF16G Description

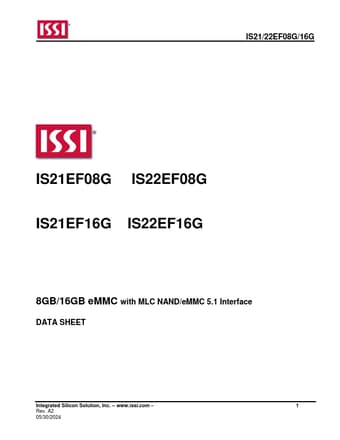

IS21/22EF08G/16G IS21EF08G IS22EF08G IS21EF16G IS22EF16G 8GB/16GB eMMC with MLC NAND/eMMC 5.1 Interface DATA SHEET Integrated Silicon Solution, Inc..
ISSI eMMC products follow the JEDEC eMMC 5.

IS22EF16G Features

* Packaged NAND flash memory with eMMC 5.1 interface - IS21/22EF08G: 8Gigabyte - IS21/22EF16G: 16Gigabyte - Compliant with eMMC Specification Ver.4.3, 4.4, 4.41,4.5,4.51, 5.0, 5.1
* Bus mode - High-speed eMMC protocol - Clock frequency: 0-200MHz. - Ten-wire bus (clock, 1-bit command,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS22EF16G, IS21EF08G. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS22EF16G, IS21EF08G
Manufacturer
ISSI
File Size
1.85 MB
Datasheet
IS21EF08G-ISSI.pdf
Description
16GB eMMC
Note
This datasheet PDF includes multiple part numbers: IS22EF16G, IS21EF08G.
Please refer to the document for exact specifications by model.
