IS22ES04G - 4GB eMMC

Product Overview

ISSI

Part number	IS22ES04G
Manufacturer	ISSI
File Size	1.97 MB
Description	4GB eMMC

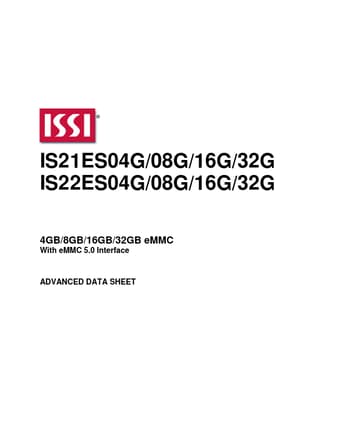

Datasheet	IS22ES04G Datasheet
Note	This datasheet PDF includes multiple part numbers: IS22ES04G, IS21ES04G. Please refer to the document for exact specifications by model.
Additional preview pages of the IS22ES04G datasheet.

ISSI eMMC products follow the JEDEC eMMC 5.0 standard.

Packaged NAND flash memory with eMMC 5.0 interface.
IS21/22ES04G: 4Gigabyte.
IS21/22ES08G: 8Gigabyte.
IS21/22ES16G: 16Gigabyte.
IS21/22ES32G: 32Gigabyte.
Compliant with eMMC Specification Ver.4.4, 4.41,4.5,5.0.
Bus mode - High-speed eMMC protocol - Clock frequency: 0-200MHz. - Ten-wire bus (clock, 1 bit command, 8 bit data bus) and a hardware reset.
Supports three different data bus widths : 1 bit(default), 4 bits, 8 bits.
