IS220 - (IS220 - IS223) OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC

Product Overview

Datasheet Details

Part number	IS220
Manufacturer	ETC
File Size	178.31 KB
Description	(IS220 - IS223) OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC
Datasheet	IS220 Datasheet

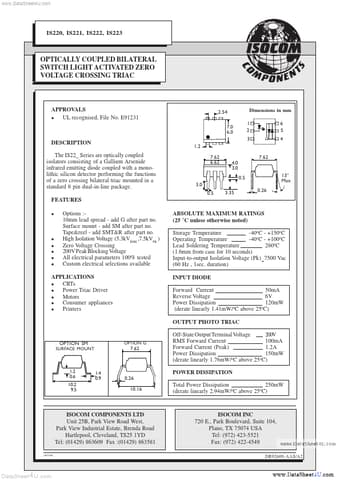

Additional preview pages of the IS220 datasheet.

Product details

Description

The IS22_ Series are optically coupled isolators consisting of a Gallium Arsenide infrared emitting diode coupled with a monolithic silicon detector performing the functions of a zero crossing bilateral triac mounted in a standard 6 pin dual-in-line package.

Features

l 1.2 7.62 6.62 4.0 3.0 0.5 0.5 3.35 3.0 l l l l l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. High Isolation Voltage (5.3kVRMS ,7.5kVPK ) Zero Voltage Crossing 200V Peak Blocking Voltage All electrical parameters 100% tested Custom electrical selections available.
