IS32WV204816B - 2M x 16 (32-Mbit) PSEUDO STATIC RAM

ISSI

📥 Download Datasheet

IS32WV204816B Datasheet Preview — Preview of IS32WV204816B PDF

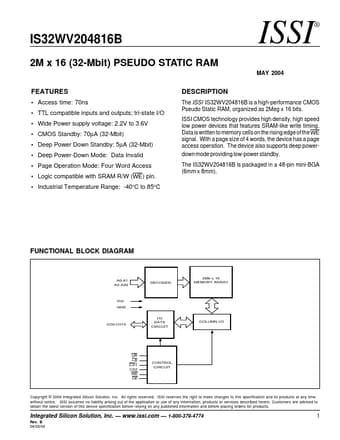

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IS32WV204816B
Manufacturer: ISSI
File Size: 175.53 KB
Datasheet: IS32WV204816B_ISSI.pdf
Description: 2M x 16 (32-Mbit) PSEUDO STATIC RAM

IS32WV204816B Product details

Description

The ISSI IS32WV204816B is a high-performance CMOS Pseudo Static RAM, organized as 2Meg x 16 bits.

Features

Access time: 70ns.
TTL compatible inputs and outputs; tri-state I/O.
Wide Power supply voltage: 2.2V to 3.6V.
CMOS Standby: 70µA (32-Mbit).
Deep Power Down Standby: 5µA (32-Mbit).
Deep Power-Down Mode: Data Invalid.
Page Operation Mode: Four Word Access.
Logic compatible with SRAM R/W (WE) pin.
Industrial Temperature Range: -40oC to 85oC.
