IS34C02B - 2K-bit 2-WIRE SERIAL CMOS EEPROM

📥 Download Datasheet

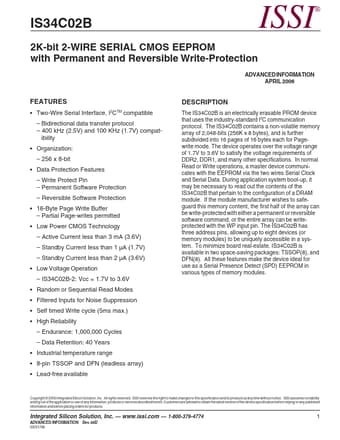

Preview of IS34C02B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS34C02B
Manufacturer
ISSI
File Size
204.75 KB
Datasheet
IS34C02B_ISSI.pdf
Description
2K-bit 2-WIRE SERIAL CMOS EEPROM

IS34C02B Product details

Description

compatible The IS34C02B is an electrically erasable PROM device that uses the industry-standard I2C communication protocol.The IS34C02B contains a non-volatile memory array of 2,048-bits (256K x 8 bytes), and is further subdivided into 16 pages of 16 bytes each for Pagewrite mode.The device operates over the voltage range of 1.7V to 3.6V to satisfy the voltage requirements of DDR2, DDR1, and many other specifications.In normal Read or Write operations, a master device communicates with the EE

Features
