IS43LR16320D, IS46LR16320D Datasheet - ISSI

IS43LR16320D 8M x 16Bits x 4Banks Mobile DDR SDRAM

The IS43/46LR16320D is 536,870,912 bits CMOS Mobile Double Data Rate Synchronous DRAM organized as 4 banks of 8,388,608 words x 16 bits. This product uses a double-data-rate architecture to achieve high-speed operation. The Data Input/ Output signals are transmitted on a 16-bit bus. The double data .

IS43LR16320D Features

* JEDEC standard 1.8V power supply

* VDD = 1.8V, VDDQ = 1.8V

* Four internal banks for concurrent operation

* MRS cycle with address key programs - CAS latency 2, 3 (clock) - Burst length (2, 4, 8, 16) - Burst type (sequential & interleave)

* Fully differentia

IS46LR16320D-ISSI.pdf

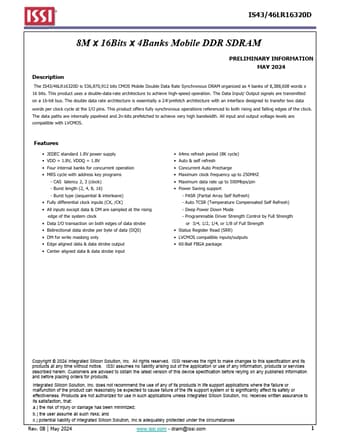

IS43LR16320D Datasheet Preview — This datasheet PDF includes multiple part numbers: IS43LR16320D, IS46LR16320D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS43LR16320D, IS46LR16320D

Manufacturer:

ISSI

File Size:

2.78 MB

Description:

8m x 16bits x 4banks mobile ddr sdram.

Note:

This datasheet PDF includes multiple part numbers: IS43LR16320D, IS46LR16320D.
Please refer to the document for exact specifications by model.
