IS43TR81280B, IS43TR16640B Datasheet - ISSI

IS43TR81280B 1Gb DDR3 SDRAM

- JEDEC Standard Symbol Type Function CK, CK# CKE CS# ODT RAS#. CAS#. WE# DM, (DMU), (DML) BA0 - BA2 A0 - A13 A10 / AP A12 / BC# RESET# DQ(DQL, DQU) Input Input Input Input Input Clock: CK and CK# are differential clock inputs. All address and control input signals are sampled on the crossing .

IS43TR81280B Features

* Standard Voltage: VDD and VDDQ = 1.5V ± 0.075V

* Low Voltage (L): VDD and VDDQ = 1.35V + 0.1V, -0.067V - Backward compatible to 1.5V

* High speed data transfer rates with system frequency up to 1066 MHz

* 8 internal banks for concurrent operation

* 8n-bit pre-fetch architecture

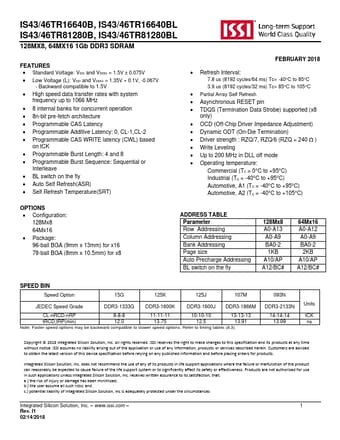

IS43TR16640B-ISSI.pdf

IS43TR81280B Datasheet Preview — This datasheet PDF includes multiple part numbers: IS43TR81280B, IS43TR16640B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS43TR81280B, IS43TR16640B

Manufacturer:

ISSI

File Size:

3.11 MB

Description:

1gb ddr3 sdram.

Note:

This datasheet PDF includes multiple part numbers: IS43TR81280B, IS43TR16640B.
Please refer to the document for exact specifications by model.
