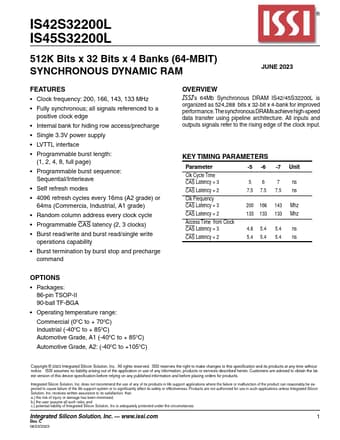

IS45S32200L, IS42S32200L - 64-MBIT SYNCHRONOUS DYNAMIC RAM

ISSI

Datasheet Details

Part number	IS45S32200L, IS42S32200L
Manufacturer	ISSI
File Size	1.03 MB
Description	64-MBIT SYNCHRONOUS DYNAMIC RAM
Datasheet	IS42S32200L-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS45S32200L, IS42S32200L. Please refer to the document for exact specifications by model.

The 64Mb SDRAM is a high speed CMOS, dynamic random-access memory designed to operate in 3.3V memory systems containing 67,108,864 bits.

Clock frequency: 200, 166, 143, 133 MHz.
Fully synchronous; all signals referenced to a positive clock edge.
Internal bank for hiding row access/precharge.
Single 3.3V power supply.
LVTTL interface.
Programmable burst length: (1, 2, 4, 8, full page).
Programmable burst sequence: Sequential/Interleave.
Self refresh modes.
4096 refresh cycles every 16ms (A2 grade) or 64ms (Commercia, Industrial, A1 grade).
R.
