IS45SM32200M

512K x 32Bits x 4Banks Mobile Synchronous DRAM

IS45SM32200M Features

* JEDEC standard 3.3V, 2.5V, 1.8V power supply

* Auto refresh and self refresh

* All pins are compatible with LVCMOS interface

* 4K refresh cycle / 64ms

* Programmable Burst Length and Burst Type - 1, 2, 4, 8 or Full Page for Sequential Burst - 4 or 8 for Interlea

IS45SM32200M General Description

These IS42SM/RM/VM32200M are mobile 67,108,864 bits CMOS Synchronous DRAM organized as 4 banks of 524,288 words x 32 bits. These products are offering fully synchronous operation and are referenced to a positive edge of the clock. All inputs and outputs are synchronized with the rising edge of the c.

IS45SM32200M Datasheet (856.23 KB)

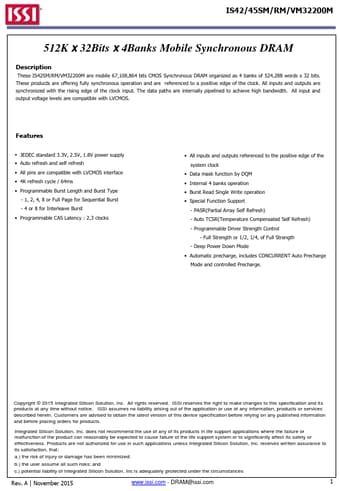

Preview of IS45SM32200M PDF

Datasheet Details

Part number:

IS45SM32200M

Manufacturer:

ISSI

File Size:

856.23 KB

Description:

512k x 32bits x 4banks mobile synchronous dram.
