IS46LR32640A 16M x 32Bits x 4Banks Mobile DDR SDRAM

IS46LR32640A Description

IS43/46LR32640A 16M x 32Bits x 4Banks Mobile DDR SDRAM .
The IS43/46LR32640A is 2,147,483,648 bits CMOS Mobile Double Data Rate Synchronous DRAM organized as 4 banks of 33,554,432 words x 32 bits.

IS46LR32640A Features

* JEDEC standard 1.8V power supply.
* VDD = 1.8V, VDDQ = 1.8V
* Four internal banks for concurrent operation
* MRS cycle with address key programs - CAS latency 2, 3 (clock) - Burst length (2, 4, 8) - Burst type (sequential & interleave)
* Fully differential c

IS46LR32640A Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

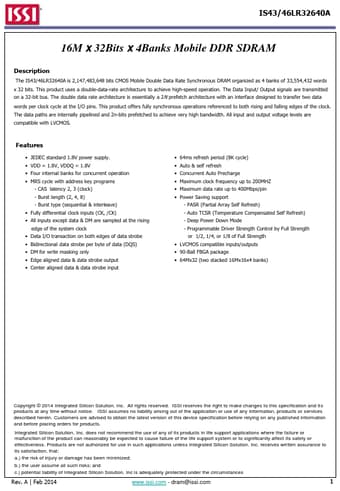

Preview of IS46LR32640A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS46LR32640A
Manufacturer
ISSI
File Size
1.16 MB
Datasheet
IS46LR32640A-ISSI.pdf
Description
16M x 32Bits x 4Banks Mobile DDR SDRAM
