IS46R16160F, IS43R83200F Datasheet - Integrated Silicon Solution

IS46R16160F, IS43R83200F, 256Mb DDR SDRAM

IS43R83200F IS43/46R16160F, IS43/46R32800F 8Mx32, 16Mx16, 32Mx8 PRELIMINARY INFORMATION 256Mb DDR SDRAM MARCH 2014 .
x8 A0-A12 Row Address Input A0-A9 Column Address Input BA0, BA1 Bank Select Address DQ0. DQ7 Data I/O CK, CK System Clock Input C.

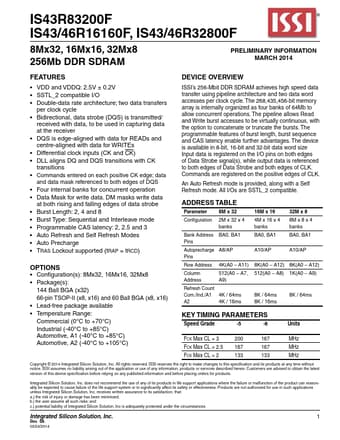

datasheet Preview Page 1 from Datasheet4u.com

IS43R83200F-IntegratedSiliconSolution.pdf

IS46R16160F Datasheet Preview — This datasheet PDF includes multiple part numbers: IS46R16160F, IS43R83200F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS46R16160F, IS43R83200F

Manufacturer:

Integrated Silicon Solution

File Size:

719.54 KB

Description:

256Mb DDR SDRAM

Note:

This datasheet PDF includes multiple part numbers: IS46R16160F, IS43R83200F.
Please refer to the document for exact specifications by model.

Features

* DEVICE OVERVIEW
* VDD and VDDQ: 2.5V ± 0.2V
* SSTL_2 compatible I/O
* Double-data rate architecture; two data transfers per clock cycle
* Bidirectional, data strobe (DQS) is transmitted/ received with data, to be used in capturing data at the receiver

Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance
