IS46DR16128C, IS46DR82560C - DDR2 DRAM

ISSI

IS46DR16128C Description

IS43/46DR82560C IS43/46DR16128C 256Mx8, 128Mx16 DDR2 DRAM .
ISSI's 2Gb DDR2 SDRAM uses a double-data-rate architecture to achieve high-speed operation.

IS46DR16128C Features

* Vdd = 1.8V ±0.1V, Vddq = 1.8V ±0.1V
* JEDEC standard 1.8V I/O (SSTL_18-compatible)
* Double data rate interface: two data transfers per clock cycle
* Differential data strobe (DQS, DQS)
* 4-bit prefetch architecture
* On chip DLL to align DQ and DQS

IS46DR16128C Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

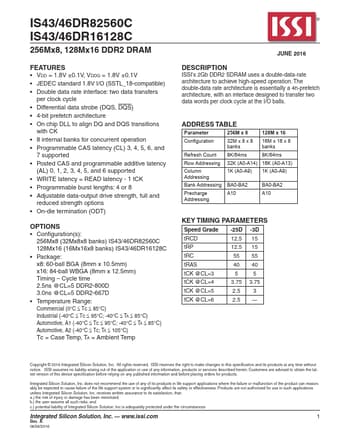

IS46DR16128C Datasheet Preview — This datasheet PDF includes multiple part numbers: IS46DR16128C, IS46DR82560C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: IS46DR16128C, IS46DR82560C
Manufacturer: ISSI
File Size: 1.53 MB
Datasheet: IS46DR82560C-ISSI.pdf
Description: DDR2 DRAM
Note: This datasheet PDF includes multiple part numbers: IS46DR16128C, IS46DR82560C.
Please refer to the document for exact specifications by model.
