IS46DR16640B Datasheet, Sdram, ISSI

IS46DR16640B Features

• Sdram
• Clock frequency up to 400MHz
• 8 internal banks for concurrent operation
• 4-bit prefetch architecture
• Programmable CAS Latency: 3, 4, 5, 6 and 7

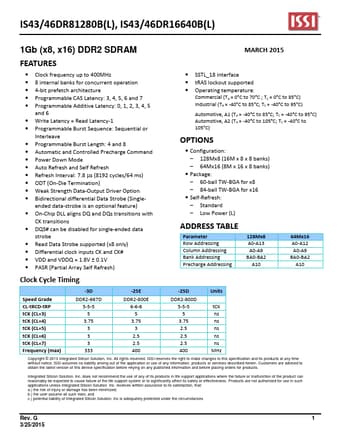

PDF File Details

Part number:

IS46DR16640B

Manufacturer:

ISSI

File Size:

1.04MB

Download:

📄 Datasheet

Description:

1gb ddr2 sdram. DDR2 SDRAM (128Mx8) TW-BGA Ball-out (Top-View) (8.00mm x 10.50mm) Symbol CK, CK# CKE CS# RAS#,CAS#,WE# A[13:0] BA[2:0] DQ[7:0] DQS,

IS46DR16640B Application

• Applications where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significan
