IS61C5128AS, IS61C5128AL - 512K x 8 HIGH-SPEED CMOS STATIC RAM

IS61C5128AS Description

IS61C5128AL/AS IS64C5128AL/AS 512K x 8 HIGH-SPEED CMOS STATIC RAM DECEMBER 2016 .
The ISSI IS61C5128AL/AS and IS64C5128AL/AS are high- speed, 4,194,304-bit static RAMs organized as 524,288 words by 8 bits.

IS61C5128AS Features

* HIGH SPEED: (IS61/64C5128AL)
* High-speed access time: 10ns, 12 ns
* Low Active Power: 150 mW (typical)
* Low Standby Power: 10 mW (typical) CMOS standby LOW POWER: (IS61/64C5128AS)
* High-speed access time: 25ns
* Low Active Power: 75 mW (typical)

IS61C5128AS Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS61C5128AS, IS61C5128AL. Please refer to the document for exact specifications by model.

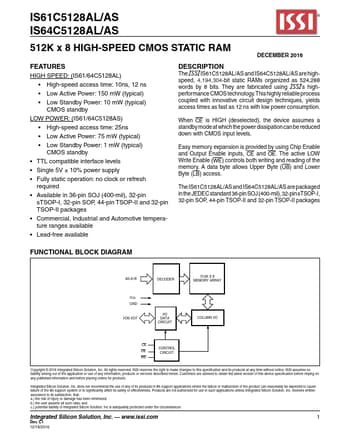

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS61C5128AS, IS61C5128AL
Manufacturer
ISSI
File Size
471.53 KB
Datasheet
IS61C5128AL-ISSI.pdf
Description
512K x 8 HIGH-SPEED CMOS STATIC RAM
Note
This datasheet PDF includes multiple part numbers: IS61C5128AS, IS61C5128AL.
Please refer to the document for exact specifications by model.
