IS61LF12836EC - SYNCHRONOUS FLOW-THROUGH SRAM

📥 Download Datasheet

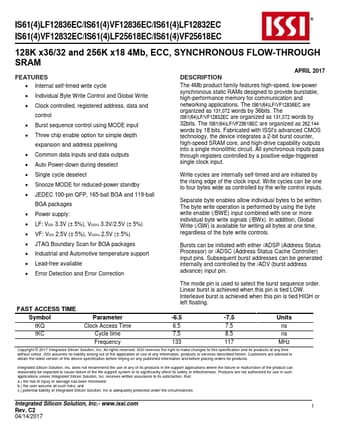

Preview of IS61LF12836EC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS61LF12836EC
Manufacturer
ISSI
File Size
2.34 MB
Datasheet
IS61LF12836EC-ISSI.pdf
Description
SYNCHRONOUS FLOW-THROUGH SRAM

IS61LF12836EC Product details

Description

APRIL 2017 Internal self-timed write cycle Individual Byte Write Control and Global Write Clock controlled, registered address, data and control Burst sequence control using MODE input Three chip enable option for simple depth expansion and address pipelining Common data inputs and data outputs Auto Power-down during deselect The 4Mb product family
