IS61LP6432A Datasheet - Integrated Silicon Solution

IS61LP6432A 64K x 32 or 64K x 36 SYNCHRONOUS PIPELINED STATIC RAM

The ISSI IS61LP6432A/36A is a high-speed synchronous static RAM designed to provide a burstable, high-performance memory for high speed networking and communication applications. The IS61LP6432A is organized as 64K words by 32 bits and the IS61LP6436A is organized as 64K words by 36 bits. Fabricated.

IS61LP6432A Features

* Internal self-timed write cycle

* Individual Byte Write Control and Global Write

* Clock controlled, registered address, data and control

* Pentium™ or linear burst sequence control using MODE input

* Three chip enables for simple depth expansion and address

IS61LP6432A_IntegratedSiliconSolution.pdf

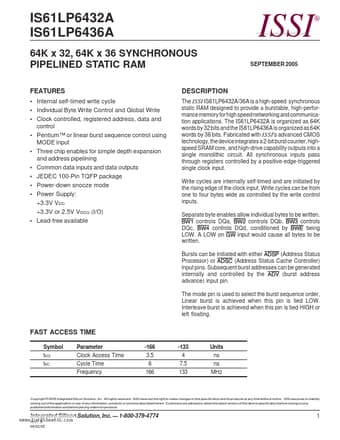

IS61LP6432A Datasheet Preview — Preview of IS61LP6432A PDF

Datasheet Details

Part number:

IS61LP6432A

Manufacturer:

Integrated Silicon Solution

File Size:

142.68 KB

Description:

64k x 32 or 64k x 36 synchronous pipelined static ram.
