IS61LF25672A Datasheet - ISSI

IS61LF25672A, (IS61xFxxxxxA) Synchronous Flow-through Static RAM

( DataSheet : www.DataSheet4U.com ) IS61LF25672A IS61VF25672A IS61LF51236A IS61VF51236A IS61LF102418A IS61VF102418A 256K x 72, 512K x 36, 1024K x 18 .
The ISSI IS61LF/VF25672A, IS61LF/VF51236A and IS61LF/VF102418A are high-speed, low-power synchronous static RAMs designed to provide burstable, highpe.

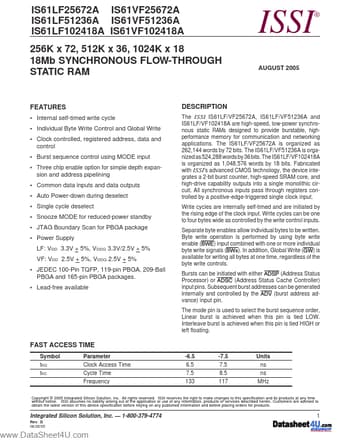

datasheet Preview Page 1 from Datasheet4u.com

IS61LF25672A_ISSI.pdf

IS61LF25672A Datasheet Preview — Preview of IS61LF25672A PDF

Datasheet Details

Part number:

IS61LF25672A

Manufacturer:

ISSI

File Size:

309.96 KB

Description:

(IS61xFxxxxxA) Synchronous Flow-through Static RAM

Features

* Internal self-timed write cycle
* Individual Byte Write Control and Global Write
* Clock controlled, registered address, data and control
* Burst sequence control using MODE input
* Three chip enable option for simple depth expansion and address pipelining

Applications

* The IS61LF/VF25672A is organized as 262,144 words by 72 bits. The IS61LF/VF51236A is organized as 524,288 words by 36 bits. The IS61LF/VF102418A is organized as 1,048,576 words by 18 bits. Fabricated with ISSI's advanced CMOS technology, the device integrates a 2-bit burst counter, high-speed SRAM
