IS61QDB22M36 Datasheet - ISSI

QUAD (Burst of 2) Synchronous SRAMs

IS61QDB22M36 Features

* 2M x 36 or 4M x 18.

* On-chip delay-locked loop (DLL) for wide data valid window.

* Separate read and write ports with concurrent read and write operations.

* Synchronous pipeline read with early write operation.

* Double data rate (DDR) interface for read a

IS61QDB22M36 General Description

The 72Mb IS61QDB22M36 and IS61QDB24M18 are synchronous, high-performance CMOS static random access memory (SRAM) devices. These SRAMs have separate I/Os, eliminating the need for high-speed bus turnaround. The rising edge of K clock initiates the read/write operation, and all internal operations are.

IS61QDB22M36 Datasheet (627.97 KB)

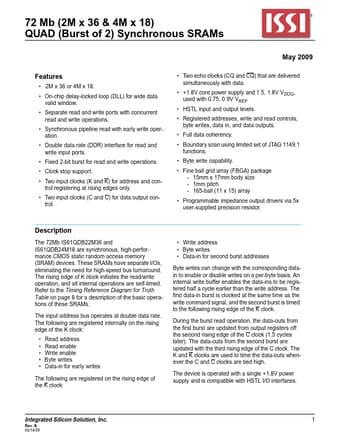

IS61QDB22M36 Datasheet Preview — Preview of IS61QDB22M36 PDF

Datasheet Details

Part number:

IS61QDB22M36

Manufacturer:

ISSI

File Size:

627.97 KB

Description:

Quad (burst of 2) synchronous srams.
