IS61C256AL

The IS61C256AL is 32K x 8 High Speed CMOS STATIC RAM designed by Integrated Silicon Solution.

Product Overview

Integrated Silicon Solution

📥 Download Datasheet

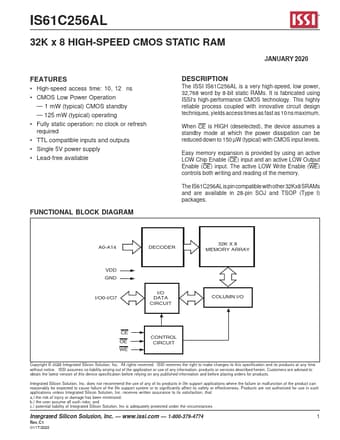

IS61C256AL 32K x 8 High Speed CMOS STATIC RAM by Integrated Silicon Solution - Datasheet Preview — Datasheet preview – IS61C256AL

Datasheet Details

Part number	IS61C256AL
Manufacturer	Integrated Silicon Solution
File Size	695.86 KB
Description	32K x 8 High Speed CMOS STATIC RAM
Datasheet	IS61C256AL_IntegratedSiliconSolution.pdf
Additional preview pages of the IS61C256AL datasheet.

Product details

Description

The ISSI IS61C256AL is a very high-speed, low power, 32,768 word by 8-bit static RAMs.

Features

High-speed access time: 10, 12 ns.
CMOS Low Power Operation.
1 mW (typical) CMOS standby.
125 mW (typical) operating.
Fully static operation: no clock or refresh required.
TTL compatible inputs and outputs.
Single 5V power supply.
Lead-free available.
