IS61C64AH Datasheet - Integrated Circuit Solution

8K x 8 HIGH-SPEED CMOS STATIC RAM

IS61C64AH Features

* High-speed access time: 15, 20, 25 ns

* Automatic power-down when chip is deselected

* CMOS low power operation

* 450 mW (typical) operating

* 250 µW (typical) standby

* TTL compatible interface levels

* Single 5V power supply

* Fully

IS61C64AH General Description

The ICSI IS61C64AH is a very high-speed, low power, 8192-word by 8-bit static RAM. It is fabricated using ICSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 15 ns with low power consumption. When CE1.

IS61C64AH Datasheet (433.68 KB)

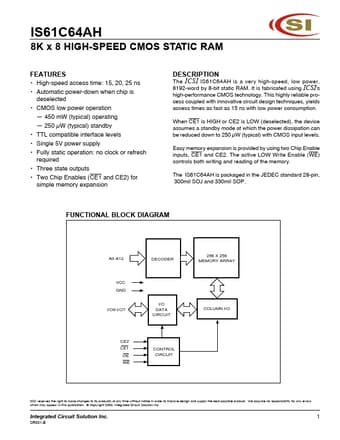

Preview of IS61C64AH PDF

Datasheet Details

Part number:

IS61C64AH

Manufacturer:

Integrated Circuit Solution

File Size:

433.68 KB

Description:

8k x 8 high-speed cmos static ram.
