IS61C6416 Datasheet - Integrated Silicon Solution

IS61C6416 64K x 16 HIGH-SPEED CMOS STATIC RAM

The ISSI IS61C6416 is a high-speed, 1,048,576-bit static RAM organized as 65,536 words by 16 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 10 ns with low power consu.

IS61C6416 Features

* High-speed access time: 10, 12, 15, and 20 ns

* CMOS low power operation

* 1650 mW (max) @ -10ns Cycle

* 55 µW (max) CMOS Standby

* TTL compatible interface levels

* Single 5V ± 10% power supply

* Fully static operation: no clock or refresh r

IS61C6416-IntegratedSiliconSolution.pdf

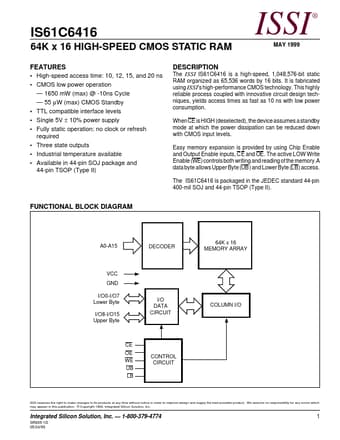

IS61C6416 Datasheet Preview — Preview of IS61C6416 PDF

Datasheet Details

Part number:

IS61C6416

Manufacturer:

Integrated Silicon Solution

File Size:

75.21 KB

Description:

64k x 16 high-speed cmos static ram.
