IS61LV25616

256 X 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM

IS61LV25616 Features

* • • • • • 256K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM WITH 3.3V SUPPLY High-speed access time: 8, 10, 12, and 15 ns CMOS low power operation TTL compatible interface levels Single 3.3V ± 10% power supply Fully static operation: no clock or refresh required • Three state outputs • Data control

IS61LV25616 General Description

The 1+51 IS61LV25616 is a high-speed, 4,194,304-bit static RAM organized as 262,144 words by 16 bits. It is fabricated using 1+51's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption dev.

IS61LV25616 Datasheet (486.31 KB)

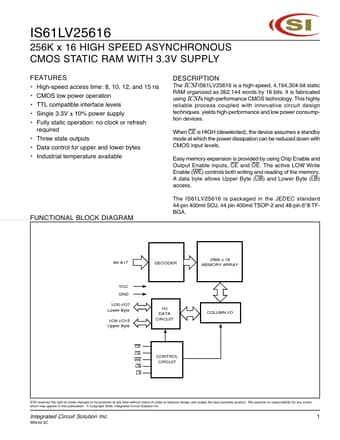

Preview of IS61LV25616 PDF

Datasheet Details

Part number:

IS61LV25616

Manufacturer:

Integrated Circuit Solution

File Size:

486.31 KB

Description:

256 x 16 high speed asynchronous cmos static ram.
