IS61LV12816LL Datasheet - Integrated Silicon Solution

IS61LV12816LL 128K x 16 HIGH-SPEED CMOS STATIC RAM

The ISSI IS61LV12816L/IS61LV12816LL is a high-speed, 2,097,152-bit static RAM organized as 131,072 words by 16 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 8 ns wit.

IS61LV12816LL Features

* High-speed access time: IS61LV12816L: 8, 10 ns IS61LV12816LL: 12, 15 ns

* Operating Current: IS61LV12816L: 50mA (typ.) IS61LV12816LL: 25mA (typ.)

* Stand by Current: IS61LV12816L: 500µA (typ.) IS61LV12816LL: 250µA(typ.)

* TTL and CMOS compatible interface levels

IS61LV12816LL Datasheet (58.61 KB)

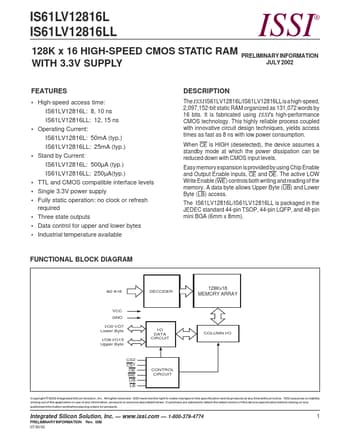

IS61LV12816LL Datasheet Preview — Preview of IS61LV12816LL PDF

Datasheet Details

Part number:

IS61LV12816LL

Manufacturer:

Integrated Silicon Solution

File Size:

58.61 KB

Description:

128k x 16 high-speed cmos static ram.
