IS61LV2568 256K x 8 HIGH-SPEED CMOS STATIC RAM

The ISSI IS61LV2568 is a very high-speed, low power, 262,144-word by 8-bit CMOS static RAM. The IS61LV2568 is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption .

IS61LV2568 Features

* High-speed access times: 10 and 12 ns

* High-performance, low-power CMOS process

* Multiple center power and ground pins for greater noise immunity

* Easy memory expansion with CE and OE options

* CE power-down

* Low power: 540 mW @ 10 ns 36 mW stand

IS61LV2568 Datasheet (71.17 KB)

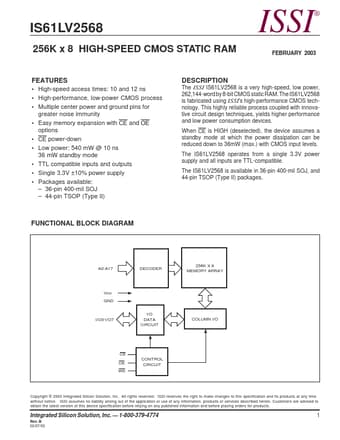

IS61LV2568 Datasheet Preview — Preview of IS61LV2568 PDF

Datasheet Details

Part number:

IS61LV2568

Manufacturer:

ISSI

File Size:

71.17 KB

Description:

256k x 8 high-speed cmos static ram.
