IS61LV25616AL Datasheet, Ram, Integrated Silicon Solution Inc

IS61LV25616AL Features

  • Ram
  • High-speed access time:
      – 10, 12 ns
  • CMOS low power operation
  • Low stand-by power:
      – Less than 5 mA (typ.) CMOS stand-by

PDF File Details

Part number:

IS61LV25616AL

Manufacturer:

Integrated Silicon Solution Inc

File Size:

298.80kb

Download:

📄 Datasheet

Description:

256k x 16 high speed asynchronous cmos static ram. The ISSI IS61LV25616AL is a high-speed, 4,194,304-bit static RAM organized as 262,144 words by 16 bits. It is fabricated using ISSI's

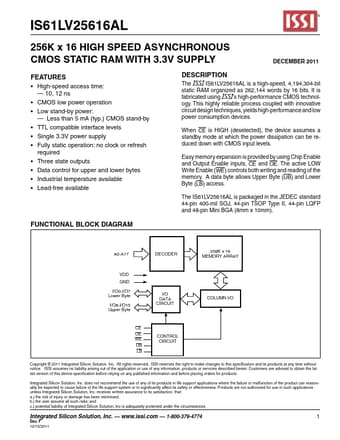

Datasheet Preview: IS61LV25616AL 📥 Download PDF (298.80kb)
Page 2 of IS61LV25616AL Page 3 of IS61LV25616AL
