IS61LV25616L

256K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM

IS61LV25616L Features

* High-speed access time:

* 10, 12, and 15 ns

* Low Active Power

* Less than 90mA (typ.) Active Current

* Low standby power:

* Less than 1 mA (typ.) CMOS standby

* TTL compatible interface levels

* Single 3.3V power supply

* Ful

IS61LV25616L General Description

The ISSI IS61LV25616L is a high-speed, 4,194,304-bit static RAM organized as 262,144 words by 16 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption dev.

IS61LV25616L Datasheet (90.54 KB)

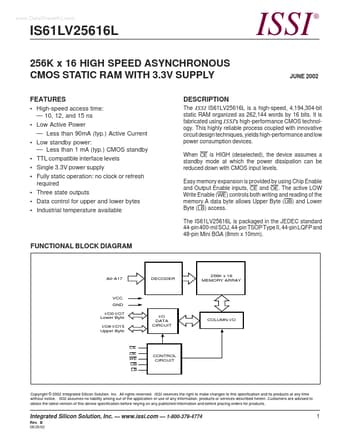

Preview of IS61LV25616L PDF

Datasheet Details

Part number:

IS61LV25616L

Manufacturer:

ISSI

File Size:

90.54 KB

Description:

256k x 16 high speed asynchronous cmos static ram.
