IS61LV256AL 32K x 8 LOW VOLTAGE CMOS STATIC RAM

The ISSI IS61LV256AL is a very high-speed, low power, 32,768-word by 8-bit static RAM.It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 8 ns maximum. When CE is HIGH (deselect.

IS61LV256AL Features

* High-speed access times:

* 10 ns

* Automatic power-down when chip is deselected

* CMOS low power operation

* 60 µW (typical) CMOS standby

* 65 mW (typical) operating

* TTL compatible interface levels

* Single 3.3V power supply

IS61LV256AL Datasheet (252.58 KB)

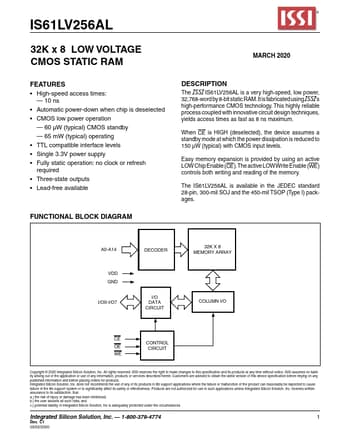

IS61LV256AL Datasheet Preview — Preview of IS61LV256AL PDF

Datasheet Details

Part number:

IS61LV256AL

Manufacturer:

Integrated Silicon Solution

File Size:

252.58 KB

Description:

32k x 8 low voltage cmos static ram.
