IS61LV12824

128K x 24 HIGH-SPEED CMOS STATIC RAM WITH 3.3V SUPPLY

IS61LV12824 Features

* High-speed access time: 8, 10 ns

* CMOS low power operation

* 756 mW (max.) operating @ 8 ns

* 36 mW (max.) standby @ 8 ns

* TTL compatible interface levels

* Single 3.3V power supply

* Fully static operation: no clock or refresh required

IS61LV12824 General Description

The ISSI IS61LV12824 is a high-speed, static RAM organized as 131,072 words by 24 bits. It is fabricated using ISSI's highperformance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 8 ns with low power consumption. When .

IS61LV12824 Datasheet (77.67 KB)

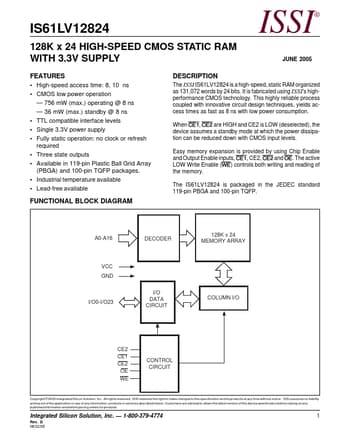

Preview of IS61LV12824 PDF

Datasheet Details

Part number:

IS61LV12824

Manufacturer:

Integrated Silicon Solution

File Size:

77.67 KB

Description:

128k x 24 high-speed cmos static ram with 3.3v supply.
