IS61LV12816L Datasheet, Ram, Integrated Silicon Solution

✔ IS61LV12816L Features

High-speed access time: 8, 10 ns
Operating Current: 50mA (typ.)
Stand by Current: 700µA (typ.)
TTL and CMOS compatible interface levels
Single 3.3V power supply

PDF File Details

Integrated Silicon Solution manufacturer logo and representative part image

Part number:

IS61LV12816L

Manufacturer:

Integrated Silicon Solution

File Size:

108.90kb

Download:

📄 Datasheet

Description:

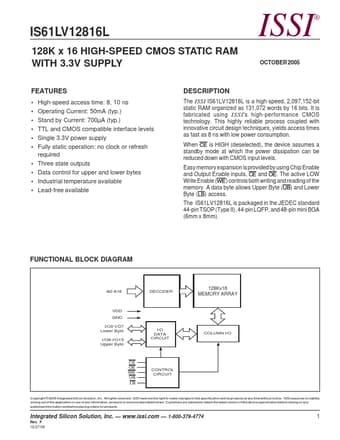

128k x 16 high-speed cmos static ram. The ISSI IS61LV12816L is a high-speed, 2,097,152-bit static RAM organized as 131,072 words by 16 bits. It is fabricated using ISSI's

📥 Download PDF (108.90kb)
