IS61LV12816 Datasheet - Integrated Circuit Solution

IS61LV12816 128K x 16 HIGH-SPEED CMOS STATIC RAM

The 1+51 IS61LV12816 is a high-speed, 2,097,152-bit static RAM organized as 131,072 words by 16 bits. It is fabricated using 1+51's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 8 ns with low power co.

IS61LV12816 Features

* 128K x 16 HIGH-SPEED CMOS STATIC RAM WITH 3.3V SUPPLY High-speed access time: 8, 10, 12, and 15 ns CMOS low power operation TTL and CMOS compatible interface levels Single 3.3V + 10%power supply Fully static operation: no clock or refresh required Three state outputs Data control for

IS61LV12816 Datasheet (146.94 KB)

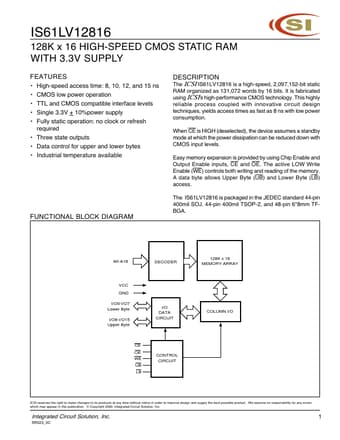

IS61LV12816 Datasheet Preview — Preview of IS61LV12816 PDF

Datasheet Details

Part number:

IS61LV12816

Manufacturer:

Integrated Circuit Solution

File Size:

146.94 KB

Description:

128k x 16 high-speed cmos static ram.
