IS62WVS2568GBLL, IS65WVS2568GALL Datasheet - ISSI

IS62WVS2568GBLL 256K x 8 LOW VOLTAGE FAST SERIAL SRAM

The ISSI IS62/65WVS2568GALL/GBLL are 2M bit Fast Serial static RAMs organized as 256K bytes by 8 bits. It is fabricated using ISSI's high-performance CMOS technology. The device is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock inp.

IS62WVS2568GBLL Features

* SPI-Compatible Bus Interface: - 30/45 MHz Clock rate - SPI/SDI/SQI mode

* Single Power Supply: - VDD = 1.65V - 2.2V (IS62/65WVS2568GALL) - VDD = 2.70V - 3.6V (IS62/65WVS2568GBLL)

* Read Latency: - SPI mode: 8 clocks - DPI mode: 4 clocks - QPI mode: 2 clocks

* Lo

IS65WVS2568GALL-ISSI.pdf

This datasheet PDF includes multiple part numbers: IS62WVS2568GBLL, IS65WVS2568GALL. Please refer to the document for exact specifications by model.

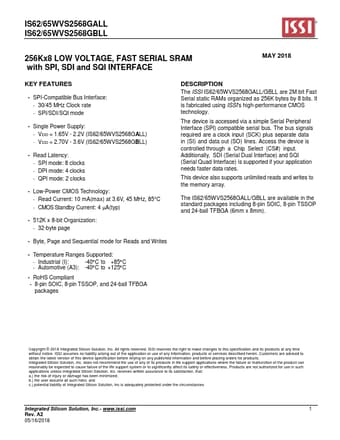

IS62WVS2568GBLL Datasheet Preview Page 2 IS62WVS2568GBLL Datasheet Preview Page 3

Datasheet Details

Part number:

IS62WVS2568GBLL, IS65WVS2568GALL

Manufacturer:

ISSI

File Size:

815.65 KB

Description:

256k x 8 low voltage fast serial sram.

Note:

This datasheet PDF includes multiple part numbers: IS62WVS2568GBLL, IS65WVS2568GALL.
Please refer to the document for exact specifications by model.
