IS62WVS5128FALL, IS65WVS5128FALL Datasheet - ISSI

IS62WVS5128FALL 512K x 8 LOW VOLTAGE SERIAL SRAM

The ISSI IS62/65WVS5128FALL/FBLL are 4M bit Serial static RAMs organized as 512K bytes by 8 bits. It is a dual die stack of two 2Mb Serial SRAMs. The device is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separat.

IS62WVS5128FALL Features

* SPI-Compatible Bus Interface: - 16/20 MHz Clock rate - SPI/SDI/SQI mode

* Low-Power CMOS Technology: - Read Current: 16 mA(max) at 3.6V, 20 MHz, 85°C - CMOS Standby Current: 8 A(typ)

* 512K x 8-bit Organization: - 32-byte page

* Byte, Page and Sequential mo

IS65WVS5128FALL-ISSI.pdf

This datasheet PDF includes multiple part numbers: IS62WVS5128FALL, IS65WVS5128FALL. Please refer to the document for exact specifications by model.

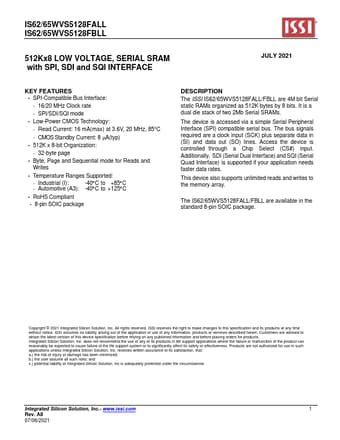

IS62WVS5128FALL Datasheet Preview Page 2 IS62WVS5128FALL Datasheet Preview Page 3

Datasheet Details

Part number:

IS62WVS5128FALL, IS65WVS5128FALL

Manufacturer:

ISSI

File Size:

543.32 KB

Description:

512k x 8 low voltage serial sram.

Note:

This datasheet PDF includes multiple part numbers: IS62WVS5128FALL, IS65WVS5128FALL.
Please refer to the document for exact specifications by model.
