IS62WVS5128GALL, IS65WVS5128GALL - FAST SERIAL SRAM

Name: IS62WVS5128GALL
SKU: IS62WVS5128GALL-1340362

ISSI

The IS62WVS5128GALL by ISSI is a FAST SERIAL SRAM. Below is the official datasheet preview.

Datasheet Details

Part number	IS62WVS5128GALL, IS65WVS5128GALL
Manufacturer	ISSI
File Size	551.73 KB
Description	FAST SERIAL SRAM
Datasheet	IS65WVS5128GALL-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS62WVS5128GALL, IS65WVS5128GALL. Please refer to the document for exact specifications by model.

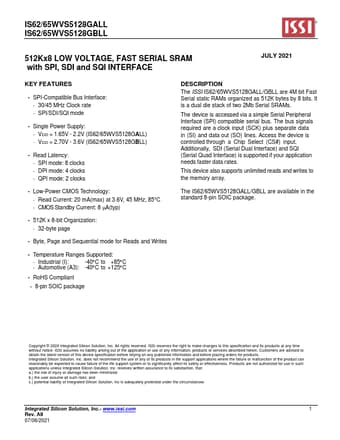

Additional preview pages of the IS62WVS5128GALL datasheet.

The ISSI IS62/65WVS5128GALL/GBLL are 4M bit Fast Serial static RAMs organized as 512K bytes by 8 bits.

SPI-Compatible Bus Interface: - 30/45 MHz Clock rate - SPI/SDI/SQI mode.
Single Power Supply: - VDD = 1.65V - 2.2V (IS62/65WVS5128GALL) - VDD = 2.70V - 3.6V (IS62/65WVS5128GBLL).
Read Latency: - SPI mode: 8 clocks - DPI mode: 4 clocks - QPI mode: 2 clocks.
Low-Power CMOS Technology: - Read Current: 20 mA(max) at 3.6V, 45 MHz, 85°C - CMOS Standby Current: 8 A(typ).
512K x 8-bit Organization: - 32-byte page.
Byte, Page and Sequential mo.
