IS64WV102416DALL 1M x 16 HIGH-SPEED ASYNCHRONOUS CMOS STATIC RAM

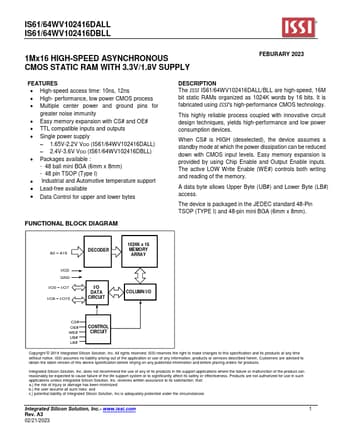

📥 Download Datasheet  Datasheet Preview Page 1

Description

IS61/64WV102416DALL IS61/64WV102416DBLL 1Mx16 HIGH-SPEED ASYNCHRONOUS CMOS STATIC RAM WITH 3.3V/1.8V SUPPLY FEBURARY 2023 .
The ISSI IS61/64WV102416DALL/BLL are high-speed, 16M bit static RAMs organized as 1024K words by 16 bits.

📥 Download Datasheet

Preview of IS64WV102416DALL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IS64WV102416DALL
Manufacturer
ISSI
File Size
509.50 KB
Datasheet
IS64WV102416DALL-ISSI.pdf
Description
1M x 16 HIGH-SPEED ASYNCHRONOUS CMOS STATIC RAM

Features

* High-speed access time: 10ns, 12ns
* High- performance, low power CMOS process
* Multiple center power and ground pins for greater noise immunity
* Easy memory expansion with CS# and OE#
* TTL compatible inputs and outputs
* Single power supply

Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance
