IS64WV10248EEBLL, IS61WV10248EEALL - 1M x 8 HIGH SPEED AYNCHRONOUS CMOS STATIC RAM

ISSI

IS64WV10248EEBLL Product details

The ISSI IS61/64WV10248EEALL/BLL are high-speed, low power, 8M bit static RAMs organized as 1024K words by 8 bits..

High-speed access time: 8ns, 10ns, 20ns.
Single power supply.
1.65V-2.2V VDD (IS61WV10248EEALL).
2.4V-3.6V VDD (IS61/64WV10248EEBLL).
Error Detection and Correction with optional ERR1/ERR2 output pin: - ERR1 pin indicates 1-bit error detection and correction. - ERR2 pin indicates 2-bit error detection.
Package Available: - 44-pin TSOP (Type II) - 48-ball mini BGA (6mm x 8mm) - 54 pin TSOP (Type II).
Three state outputs.
Industrial and Automotive t.

Part number: IS64WV10248EEBLL, IS61WV10248EEALL
Manufacturer: ISSI
File Size: 765.49 KB

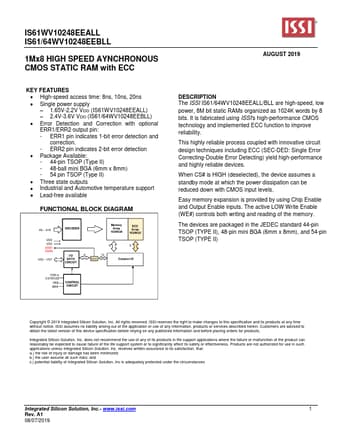

Datasheet: IS61WV10248EEALL-ISSI.pdf
Description: 1M x 8 HIGH SPEED AYNCHRONOUS CMOS STATIC RAM
Note: This datasheet PDF includes multiple part numbers: IS64WV10248EEBLL, IS61WV10248EEALL.
Please refer to the document for exact specifications by model.
