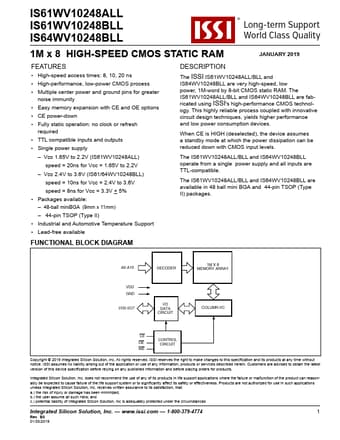

Description
The ISSI IS61WV10248ALL/BLL and IS64WV10248BLL
are very high-speed, low power, 1M-word by 8-bit CMOS static RAM.The IS61WV10248ALL/BLL and
IS64WV10248BLL are fabricated using ISSI's high-
performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices.When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.Th.
Features
- High-speed access times:
8, 10, 20 ns.
- High-performance, low-power CMOS process.
- Multiple center power and ground pins for
greater noise immunity.
- Easy memory expansion with CE and OE
options.
- CE power-down.
- Fully static operation: no clock or refresh
required.
- TTL compatible inputs and outputs.
- Single power supply.
- VDD 1.65V to 2.2V (IS61WV10248ALL) speed = 20ns for Vcc = 1.65V to 2.2V.
- VDD 2.4V to 3.6V (.
