IS66WVE2M16DALL 1.8V Core Async/Page PSRAM

PSRAM products are high-speed, CMOS pseudo-static random access memory developed for low-power, portable applications. The 32Mb DRAM core device is organized as 2 Meg x 16 bits. These devices include the industry-standard, asynchronous memory interface found on other low-power SRAM or pseudo-SRAM (P.

IS66WVE2M16DALL 1.8V Core Async/Page PSRAM Overview The IS66WVE2M16DALL is an integrated memory device containing 32Mbit Pseudo Static Random Access Memory using a self-refresh DRAM array organized as 2M words by 16 bits. The device includes several power saving modes : Partial Array Refresh mode where data is retained in a portion of the array and Deep Power Down mode. Both these modes reduce standby current drain. The die has separate power rails, VDDQ and VSSQ for the I/O to be run from a sep.

IS66WVE2M16DALL Features

* Asynchronous and page mode interface

* Dual voltage rails for optional performance

* VDD 1.8V, VDDQ 1.8V

* Page mode read access

* Interpage Read access : 70ns

* Intrapage Read access : 20ns

* Low Power Consumption

* Asynchronous Operation < 30 mA

* Intrapage Re

IS66WVE2M16DALL Datasheet (386.98 KB)

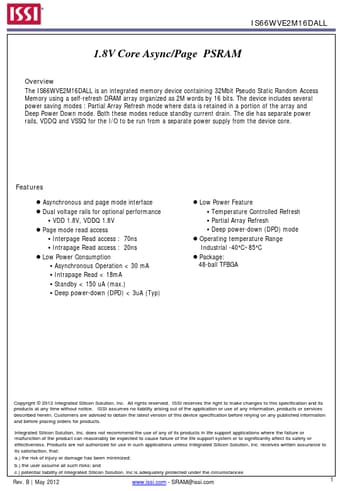

IS66WVE2M16DALL Datasheet Preview — Preview of IS66WVE2M16DALL PDF

IS66WVE2M16DALL Datasheet Preview Page 2

IS66WVE2M16DALL Datasheet Preview Page 3

Datasheet Details

Part number:

IS66WVE2M16DALL

Manufacturer:

ISSI

File Size:

386.98 KB

Description:

1.8v core async/page psram.
